MODEL:
ET-1324S1
Dimension:
Electrical   Characteristics:
Model No. ET-1324S1 ET-1324S1A
Rated Voltage(Vo-p) 5 12
Operating Voltage(Vo-p) 4¡ã7 8¡ã16
Coil Resistance(ohm) 45¡Ó4 140¡Ó14
Resonant Frequency(Hz) 2400¡Ó300
*Sound Output at 10cm(dB) ≥90
*Rated Current (mA) 60max 40max
Operating Temperature(¢J) -30¡ã+85
Storage Temperature(¢J) -40¡ã+90
Weight(g) 3
Case material and colour PPS/Black
*Applying rated voltage (Resonant frequency, 1/2 duty, Square wave)

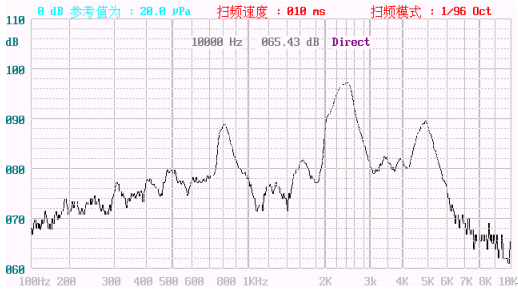

Frequency  Response:
¡@
¡@
¡@
