MODEL:
PT-1820S

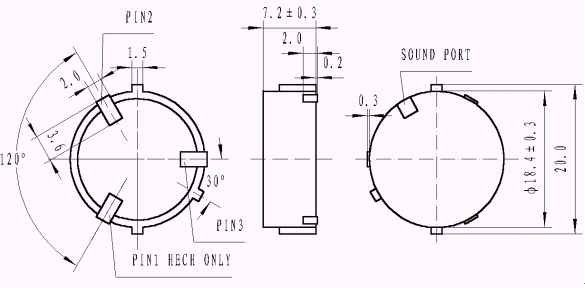

Dimension:
Electrical   Characteristics:
Model No. PT-1820S
Rated Voltage (Vp-p) 3.6
Operating Voltage (Vp-p) 1¡ã25
Resonant Frequency (Hz) 2000¡Ó500
Capacitance 100Hz (pF) 34000¡Ó30%
*Sound Output at 10cm (dB) ≥75
*Current Consumption (mA) 3max
Operating Temperature (¢J) -20¡ã+70
Storage Temperature (¢J) -30¡ã+80
Weight (g) 2.0
Case material and colour LCP/Black
*Applying rated voltage (Resonant frequency, Square wave)

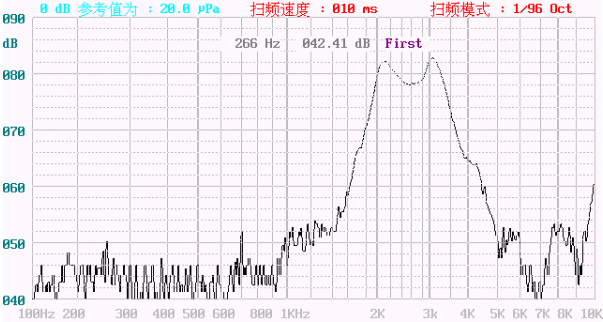

Frequency  Response:
¡@
¡@
¡@
