MODEL:
D4176FLP16

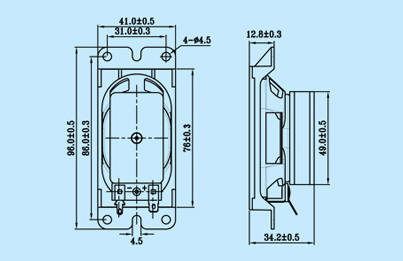

Dimension:

Electrical   Characteristics:
MODEL D4176FLP16
Impedance 16
Rated input 3.0
Max.input 5.0
Resonance Frequency 180¡Ó36
Frequency Response 100¡ã20K
Sound Pressure Level 85¡Ó3/1w 1m
Materials Plastics

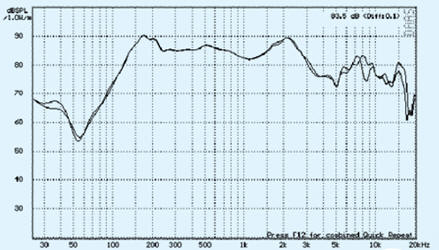

Frequency  Response:

¡@
¡@
¡@
