MODEL:
DF18P01B GP

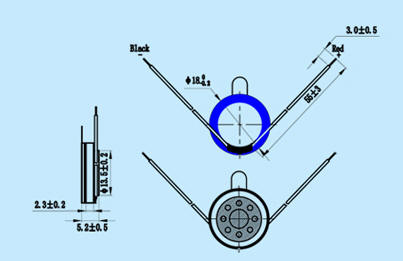

Dimension:

Electrical   Characteristics:
MODEL DF18P01B GP
Impedance 8
Rated input 0.2
Max.input 0.4
Resonance Frequency 660¡Ó132
Frequency Response 300¡ã20K
Sound Pressure Level 89¡Ó3/0.1w  0.1m
Materials Plastics

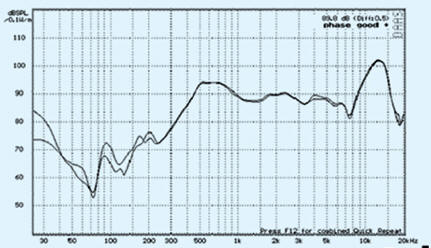

Frequency  Response:

¡@
¡@
¡@
