MODEL:
DF27P27W GP

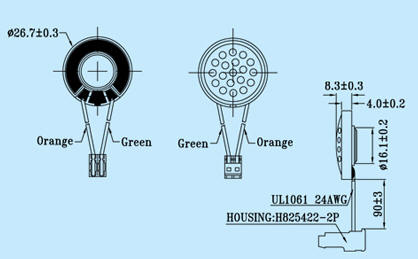

Dimension:

Electrical   Characteristics:
MODEL DF27P27W GP
Impedance 600
Rated input 0.02
Max.input 0.05
Resonance Frequency 180¡Ó36
Frequency Response 100¡ã20K
Sound Pressure Level 82¡Ó3/1mw 1cm
Materials Plastics

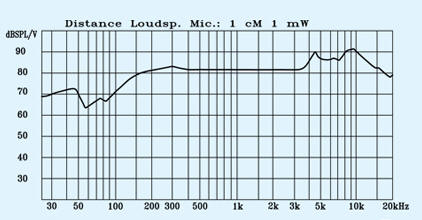

Frequency  Response:

¡@
¡@
¡@
