| MODEL: |
| MI6050L |
 |
|
|
 |
|

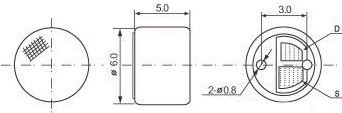

Dimension: |
 |
|
Electrical Characteristics: |
| Sensitivity |
-50¡Ó-50¡Ó4dB(0dB=1V/Pa,1KHz) |
| Impedance |
2.2k£[-30% |
| Directivity |
Unidirectional |
| Difference from 0¢X to 180¢X(1kHz) |
>12dB
|

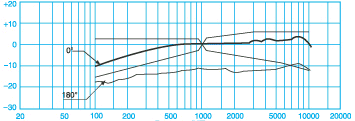

| Frequency |
100-12,000Hz |
| Max,operation Voltage |
10V |
| Standard Operation Voltage |
2V |
| Current consumption |
Max,0.5mA |
| Sensitivity reduction |
Within-3dB at 1.5V |
| S/N ratio |
More than 58dB(56dB) |
|
|
Characteristics:
|
 |
|
|
|
|
| ¡@ |
| ¡@ |
|
¡@ |
