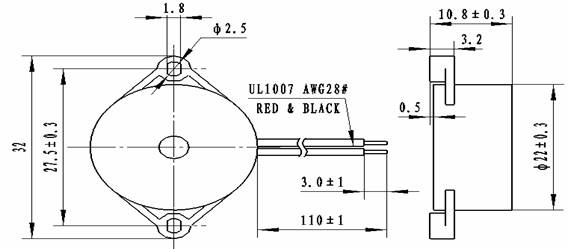

CONTACT  US                          ¤¤¤åª© ¡@   MODEL: PBC-2245W Dimension:   Electrical   Characteristics: Model No. PBC-2245W Rated Voltage (VDC) 12 Operating Voltage (VDC) 3¡ã20 Resonant Frequency (Hz) 4500¡Ó500 *Sound Output at 10cm (dB) ≥85 *Current Consumption (mA) 5max Operating Temperature (¢J) -20¡ã+60 Storage Temperature (¢J) -30¡ã+70 Weight (g) 5 Case material and colour LCP/Black *Applying rated voltage (Resonant frequency, Square wave)   ¡@ ¡@ ¡@

¡@
