MODEL:

PBC4028P

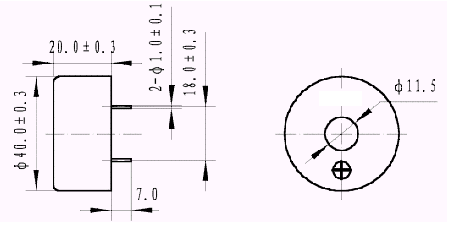

Dimension:

Electrical Characteristics:

Model No.	PBC4028P
Rated Voltage (VDC)	9
Operating Voltage (VDC)	3～20
*Rated Current (mA)	50max
*Sound Output at 1m (dB)	≥100
*Resonant Frequency (KHz)	2.8±0.5
Operating Temperature (℃)	-20 ～ +70
Storage Temperature (℃)	-30 ～ +80
Weight (g)	12.7
Case material and colour	PPO/Black
*Value applying rated voltage (DC)

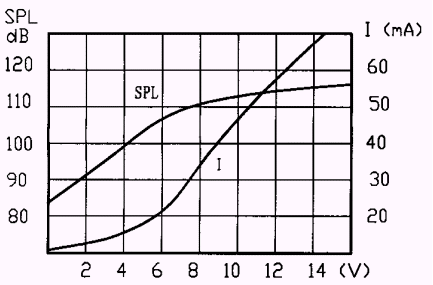

Voltage/ Current/ Sound Pressure:
