dBace  Electronic  Co.,Ltd            Acoustic      Components                 RoHS
Piezo Buzzer
Piezo Transducer
Piezo Element
Magnetic Buzzer
Magnetic Transducer
SMD Buzzer/transducer
Speaker
   CONTACT  US                      ¤¤¤åª©


¡@
MODEL:
PT-1740W

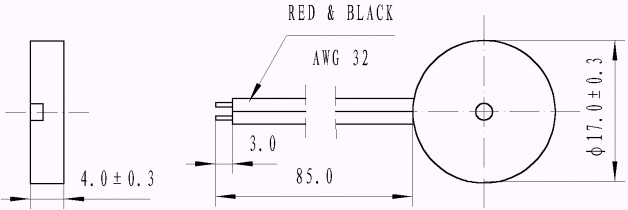

Dimension:
Electrical   Characteristics:
Model No. PT-1740W
Rated Voltage (Vp-p) 3
Operating Voltage (Vp-p) 1¡ã30
Resonant Frequency (Hz) 4000¡Ó500
Capacitance at 120Hz (pF) 15000¡Ó30%
*Sound Output at 10cm (dB) ≥78
*Current Consumption (mA) 2max
Operating Temperature (¢J) -20¡ã+60
Storage Temperature (¢J) -30¡ã+70
Weight (g) 1
Case material and colour ABS/Black
*Applying rated voltage (Resonant frequency, Square wave)

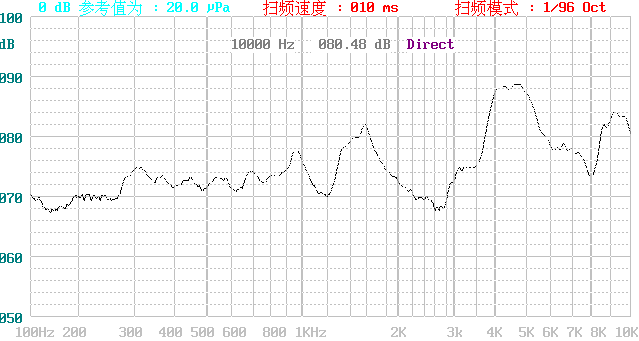

Frequency  Response:
¡@
¡@
¡@
  Tel: 886-3-3679314    Fax: 886-3-3671557             e-mail:jack@dbace-buzzer.com.tw
China  Plant : Jiangsu Changzhou
