MODEL:

PT-1740P

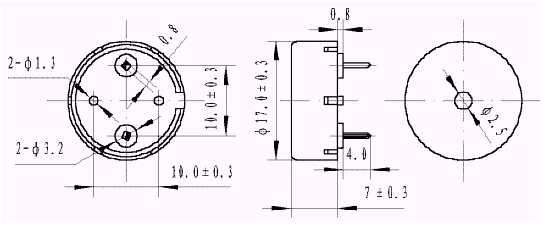

Dimension:

Electrical Characteristics:

Model No.	PT-1740P
Rated Voltage (Vp-p)	5
Operating Voltage (Vp-p)	1～30
Resonant Frequency (Hz)	4000±500
Capacitance 120Hz (pF)	15000±30%
*Sound Output at 10cm (dB)	≥85
*Current Consumption (mA)	2max
Operating Temperature (℃)	-20～+70
Storage Temperature (℃)	-30～+80
Weight (g)	1.3
Case material and colour	PPO/Black
*Applying rated voltage (Resonant frequency, Square wave)

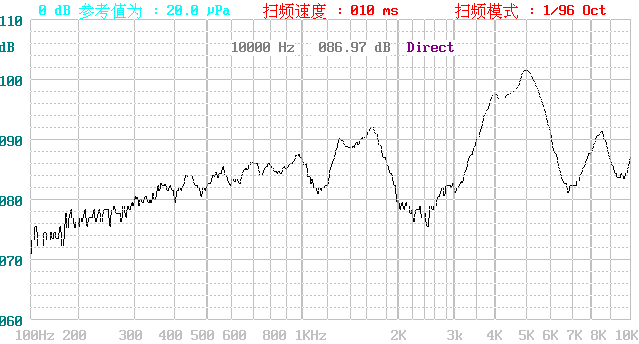

Frequency Response:
