MODEL:

PT-1720P

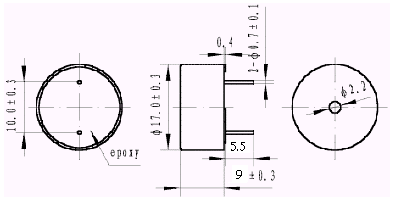

Dimension:

Electrical Characteristics:

Model	PT-1720P	PT-1720PA
Rated Voltage (Vp-p)	3	5
Operating Voltage (Vp-p)	1～25	1~20
Resonant Frequency (Hz)	2000±500	3000±500
Capacitance 120Hz (PF)	30000±30%
*Sound Output at 10cm (dB)	≥75	≥85
*Current Consumption (mA)	1max	3max
Operating Temperature (℃)	-20～+60	-20~+70
Storage Temperature (℃)	-30～+70	-30~+80
Weight (g)	1.5	1.4
Case material and colour	PPO/Black
*Applying rated voltage (Resonant frequency, Square wave)

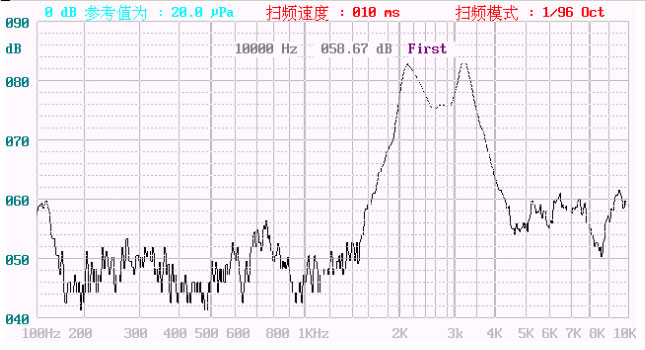

Frequency Response:
