MODEL:
PT-2234P

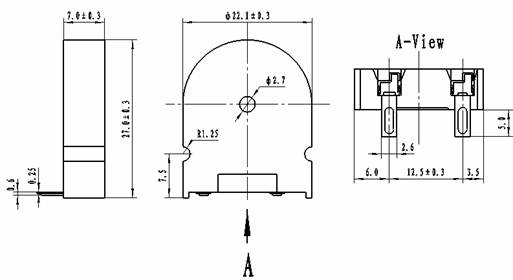

Dimension:


Electrical   Characteristics:
Model No. PT-2234P
Rated Voltage (Vp-p) 3
Operating Voltage (Vp-p) 1¡ã30
Resonant Frequency (Hz) 3400¡Ó500
Capacitance 120Hz (pF) 35000¡Ó30%
*Sound Output at 10cm (dB) ≥90
*Current Consumption (mA) 5max
Operating Temperature (¢J) -20¡ã+70
Storage Temperature (¢J) -35¡ã+85
Weight (g) 2.5
Case material and colour PPO/Black
*Applying rated voltage (Resonant frequency, Square wave)

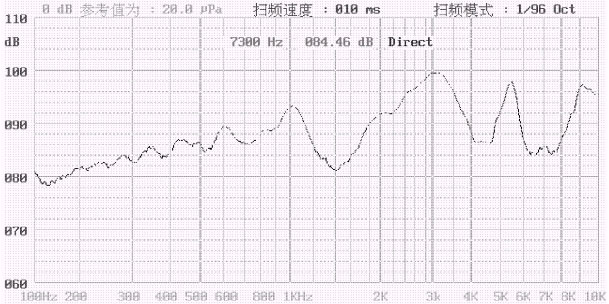

Frequency  Response:
¡@
¡@
¡@
