MODEL:
PT-2430P

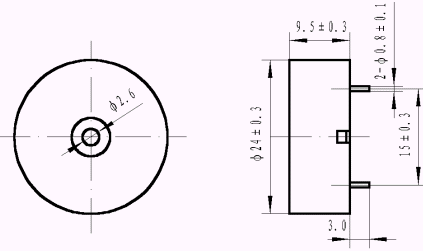

Dimension:
Electrical   Characteristics:
Model No. PT-2430P
Rated Voltage (Vp-p) 12
Operating Voltage (Vp-p) 1¡ã30
Resonant Frequency (Hz) 3000¡Ó500
Capacitance 120Hz (pF) 25000¡Ó30%
*Sound Output at 10cm (dB) ≥90
*Current Consumption (mA) 10max
Operating Temperature (¢J) -30¡ã+95
Storage Temperature (¢J) -40¡ã+105
Weight (g) 3.4
Case material and colour PPS/Black
*Applying rated voltage (Resonant frequency, Square wave)

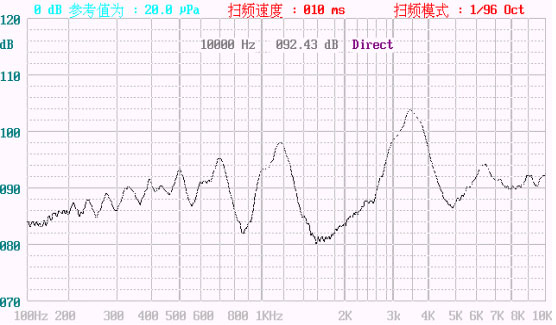

Frequency  Response:
¡@
¡@
¡@
