MODEL:
PT-3040W
Dimension:
Electrical   Characteristics:
Model No. PT-3040W
Rated Voltage (Vp-p) 12
Operating Voltage (Vp-p) 1¡ã30
Resonant Frequency (Hz) 4000¡Ó500
Capacitance 120Hz (pF) 20000¡Ó30%
*Sound Output at 10cm (dB) ≥90
*Current Consumption (mA) 5max
Operating Temperature (¢J) -20¡ã+60
Storage Temperature (¢J) -30¡ã+70
Weight (g) 4
Case material and colour ABS/Black
*Applying rated voltage (Resonant frequency, Square wave)

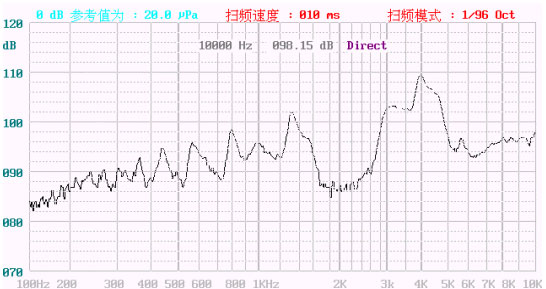

Frequency  Response:
¡@
¡@
¡@
